Fairino FR20 | 6DOF | 1854mm | 20kg

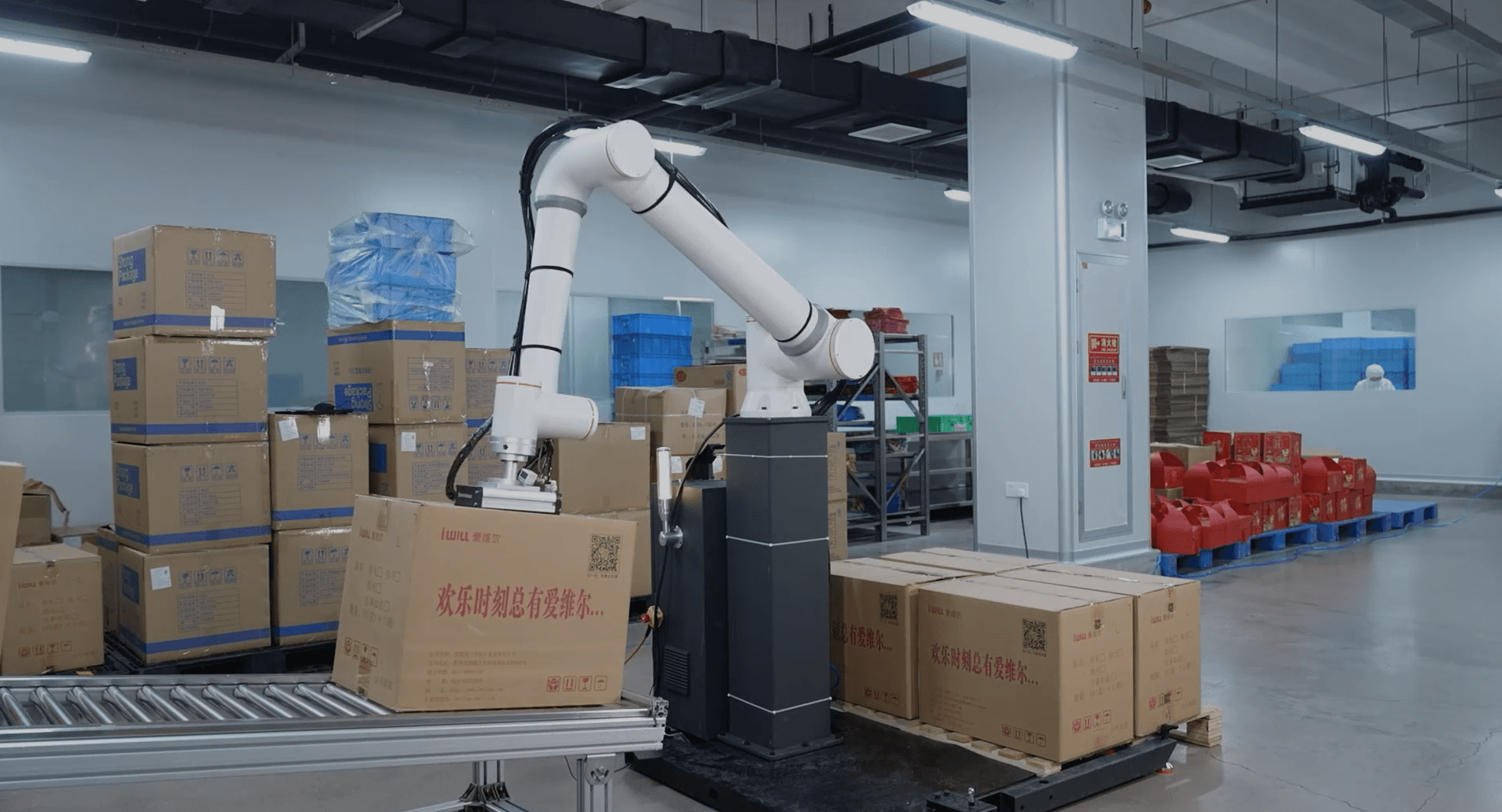

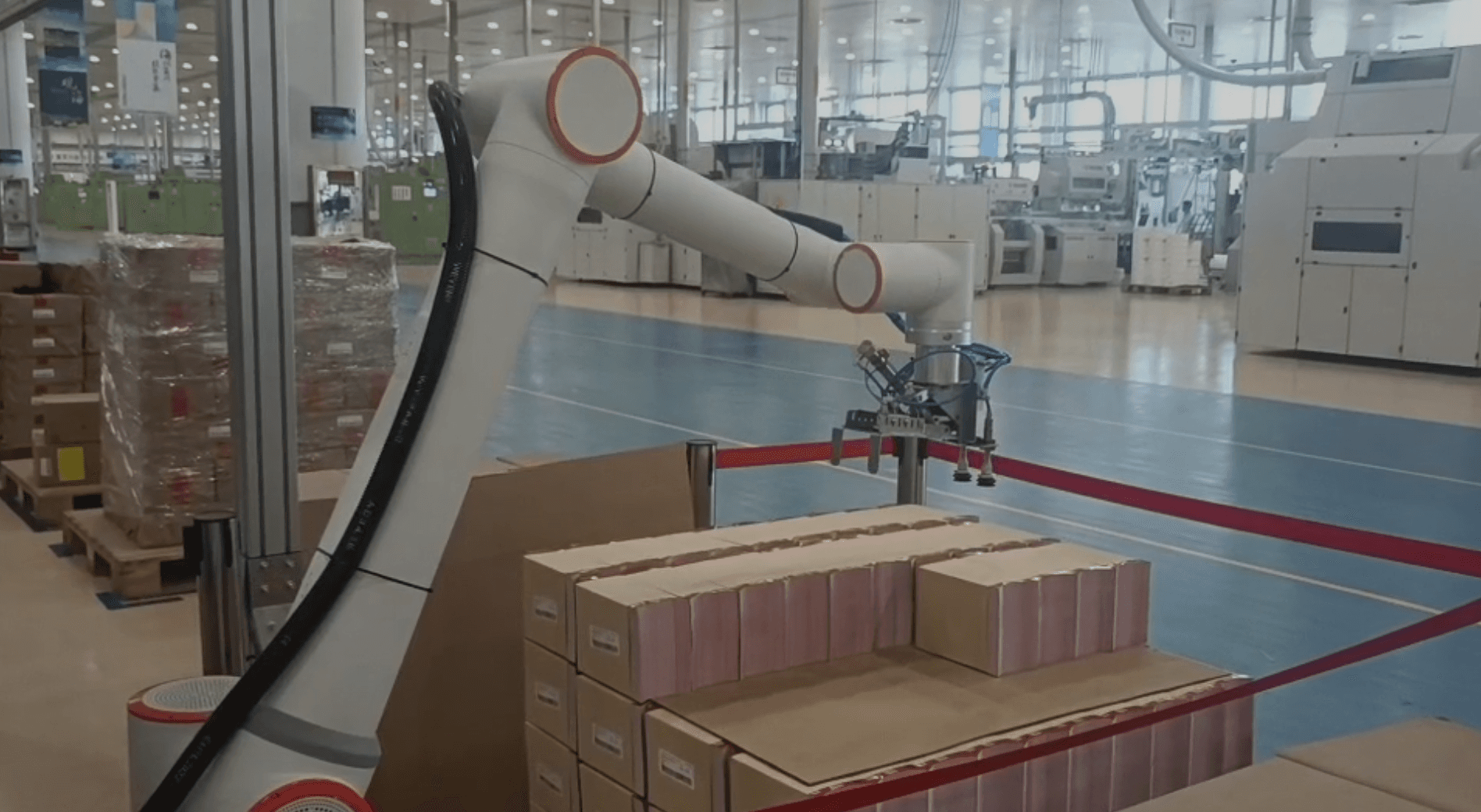

The Fairino FR20 IP65 was developed for manufacturers that need to automate large work areas while handling heavy payloads in demanding industrial environments. With a 20 kg payload, 1,854 mm reach, ±0.1 mm repeatability, and a fully protected IP65 design, the robot is ideally suited for palletizing, machine tending, material handling, packaging operations, logistics processes, and vision-guided pick-and-place applications. The IP65 protection rating provides reliable resistance against dust, moisture, and water exposure, making the FR20 IP65 particularly suitable for production environments where cleaning processes and harsh operating conditions are part of daily operations. Its combination of strength, reach, and durability allows manufacturers to increase productivity while maintaining reliable process quality.

The Fairino FR20 IP65 combines exceptional payload capacity with intuitive operation and flexible deployment options. Using the WebApp or teach pendant, robot positions can be taught directly and production workflows can be automated efficiently. Applications such as palletizing, material handling, machine tending, and packaging processes can be implemented with minimal effort. With a payload capacity of 20 kg, a typical TCP speed of up to 2 m/s, and six coordinated robot axes, the FR20 IP65 is designed for high-throughput industrial environments. Its IP65-rated construction provides additional protection against dust and water ingress, ensuring reliable performance even in challenging conditions and helping companies maintain consistent production output.

With a 1,854 mm reach, the Fairino FR20- IP65 is one of the longest-reaching collaborative robots in its class. Large machines, conveyor systems, and complete palletizing stations can be serviced without requiring additional linear axes. Its 20 kg payload enables the handling of heavy components as well as the use of large gripper and vacuum systems. The robot features six axes, integrated digital and analog I/O, and industrial communication protocols including TCP/IP, Modbus TCP/RTU, Profinet, EtherNet/IP, and EtherCAT. This allows the FR20 to integrate seamlessly into modern manufacturing and logistics environments while connecting easily to PLCs, MES platforms, and vision systems.

Large-scale automation projects typically require more than just a robot. Additional components such as grippers, safety systems, conveyor technology, vision systems, and software solutions are often required to create a complete production system. Through RBTX, compatible components for the Fairino FR20 IP65 can be selected and verified for compatibility, reducing engineering effort and minimizing integration risks. Thanks to its high payload and extended reach, the robot is particularly suitable for large end-of-arm tooling, multi-gripper applications, and complex material flow processes. Support for Python, C++, C#, ROS/ROS2, and graphical programming environments allows the FR20 IP65 to integrate smoothly into both conventional production cells and advanced automation or logistics systems.

The Fairino FR20 IP65 was designed to automate heavy loads and demanding workflows with maximum reliability. Its combination of high payload capacity, long reach, robust construction, and protected IP65 design enables processes to operate with greater productivity, stable quality, and improved operational reliability. The IP65-rated housing helps protect critical components against dust, moisture, and washdown procedures, reducing downtime risks and supporting higher system availability. At the same time, employees can be relieved from repetitive and physically demanding tasks while businesses benefit from improved throughput and process consistency. This makes the FR20 IP65 a valuable investment for improving competitiveness, optimizing resources, and supporting sustainable growth.

Selecting the right robot should always be based on the technical and environmental requirements of the application. Factors such as payload, reach, workpiece dimensions, cycle time, environmental conditions, and integration requirements all play an important role in the decision-making process. The Fairino FR20 IP65 is particularly suitable for companies that need to automate heavy material handling, large palletizing operations, machine tending, or demanding logistics applications in environments exposed to dust, humidity, or regular cleaning procedures. With a 20 kg payload, 1,854 mm reach, ±0.1 mm repeatability, TCP speeds of up to 2 m/s, IP65 protection, and extensive industrial communication capabilities, it covers a broad range of advanced automation requirements. RBTX can help identify the ideal combination of robot, gripper, and accessories to create a solution tailored precisely to your production environment.

RBTX Learn – Fairino Starter Series is the ideal introduction to Fairino robot programming and cobot automation. Through practical step-by-step lessons, users learn how to set up, operate, and program a Fairino cobot. The course covers the fundamentals of commissioning, motion programming, workflow optimization, and automation. By combining theoretical knowledge and hands-on exercises, it helps users build robotics skills quickly and confidently. Whether for manufacturing, machine tending, pick-and-place applications, or prototyping, RBTX Learn provides the knowledge required to implement automation solutions efficiently and unlock the full potential of Fairino robots. RBTX Learn - Fairino Starter Series
